80 Toyota Tanny and t-case and other goodies

Post by **Trailduster79** » Thu Feb 01, 2007 2:44 pm

Is the tranny and t-case out of an 80 yota worth anything?

Anything wrong with the axles?

I am picking up an 80 toyota this weekend to junk and didn't know if it would be worth keeping the tranny and t-case or not. Plan on using the axles under my samurai.

Is there anything good or bad about 80 toyota axles?

I know Krantz, Clay and Arya are yota gurus.

Post by **alk1174** » Thu Feb 01, 2007 3:01 pm

Front solid axles are the same through the years except the 84 and 85 which have extra gussetting on the housing. The rear axles on solid axle trucks are the same 79-85 its the 86 and up that are 3" wider and have bigger brakes. I believe that its an L43 4spd trans with a top shift case. The case is definitely worth keeping the trans is not the strongest but it is shorter than newer models so it would fit in a sami a little easier. Those trannys have bearing issues though I am going through that now. Also some of these early trucks had solid pinion spacers in the diffs instead of crush sleeves. Thats about all I can think of now.

Post by **jonesy** » Thu Feb 01, 2007 3:24 pm

Trailduster79 wrote:Is the tranny and t-case out of an 80 yota worth anything?

Anything wrong with the axles?

I am picking up an 80 toyota this weekend to junk and didn't know if it would be worth keeping the tranny and t-case or not. Plan on using the axles under my samurai.

Is there anything good or bad about 80 toyota axles?

I know Krantz, Clay and Arya are yota gurus.

like stated, the xfer should be top shift, they are worth something for sure ... tranny isnt the best, but its not bad by any means.

if you are looking to get rid of either, let me know...im looking for a top shift xfer and a tranny for my yota

Post by **Trailduster79** » Thu Feb 01, 2007 4:17 pm

alk1174 wrote:Front solid axles are the same through the years except the 84 and 85 which have extra gussetting on the housing. The rear axles on solid axle trucks are the same 79-85 its the 86 and up that are 3" wider and have bigger brakes. I believe that its an L43 4spd trans with a top shift case. The case is definitely worth keeping the trans is not the strongest but it is shorter than newer models so it would fit in a sami a little easier. Those trannys have bearing issues though I am going through that now. Also some of these early trucks had solid pinion spacers in the diffs instead of crush sleeves. Thats about all I can think of now.

You are da man.

Oh, and by the way, I haven't forgotten about your axle. I am sorry I haven't done anything about it yet, but I do plan on coming that way soon.

Post by **MtnToys** » Thu Feb 01, 2007 6:20 pm

I think 4 speed it has L43. If its 5 speed then its L50. I know L43 have a nonremovable bell housing and L50/52 have removable bell housings. Apparently the input bearings are weaker the L trannies as apposed to the W and G trannies.

Post by **yotacowboy** » Thu Feb 01, 2007 7:27 pm

replies so far are pretty much dead on.

The L series tranny's aren't as strong as the W series (or G series) BUT, they can be built pretty stout, Marlin's been using a built L series tranny in his Formula Toy with pretty good results.

Top shift t-case is the most desireable and it's what that toy came with. Good stuff.

The rear springs *could* be pretty useful, too, for anybody wanting to run a "rears up front" spring setup (measure to make sure, they should be 48" eye-to-eye along the top leaf and are mil-wrapped). actually, mixing the front and rear packs works pretty darn well up front on the 4 cyl toys. gives about 3-4" lift and very flexy.

Post by **jonesy** » Thu Feb 01, 2007 11:13 pm

MtnToys wrote:I think 4 speed it has L43. If its 5 speed then its L50. I know L43 have a nonremovable bell housing and L50/52 have removable bell housings. Apparently the input bearings are weaker the L trannies as apposed to the W and G trannies.

you have that backwards ... the L43 has an removeable aluminum bellhousing. the later years are cast as one piece .... i know this becuase i pulled the tranny out of my 83 and it sure as hell wasnt the weight of a half-aluminum tranny :lol2:

and i double checked marlin crawler :o

Post by **Trailduster79** » Fri Feb 02, 2007 9:20 am

alright, I know I am going to save

both axles
springs
Tranny
t-case
engine if it is there.

Anyone need anything off the cab before I scrap it?

Going to pick the truck up tomorrow morning.

Post by **alk1174** » Fri Feb 02, 2007 11:57 am

Mike I would keep the dshafts even though they use a smaller bolt than newer models, but if you dont want them I will take em.

Post by **Trailduster79** » Fri Feb 02, 2007 12:38 pm

Yeah, I am going to keep them too. They will bolt into a samurai with an adapter and they work great.

Main thing that will be left is the body and frame. I have no need for it, so it is going to the scrap yard next weekend.

So if anyone needs anything off the body, let me know.

Post by **alk1174** » Fri Feb 02, 2007 1:32 pm

What shape are the doors and hood in?

Post by **Trailduster79** » Fri Feb 02, 2007 3:20 pm

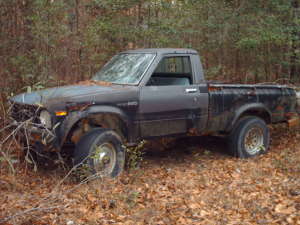

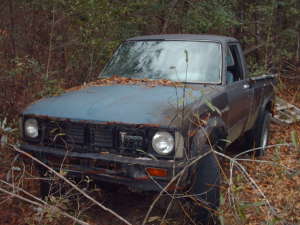

here are the pics I have of it.

I haven't seen it in person yet, will see it tomorrow morning.

Post by **Trailduster79** » Fri Feb 02, 2007 3:21 pm

I will take some pics of it when I get it home tomorrow, and if you are interested in the doors and hood, or anything else, let me know and I will keep them when it goes to the scrap yard.

Post by **Trailduster79** » Fri Feb 23, 2007 9:52 am

The truck is now just a memory

The entire body was rusted through. The frame was rusted in half.

Post by **Leach** » Fri Feb 23, 2007 8:01 pm

So did you pick it up though? Get the parts you needed off of it? Little sami is getting pimp.
